预处理设备

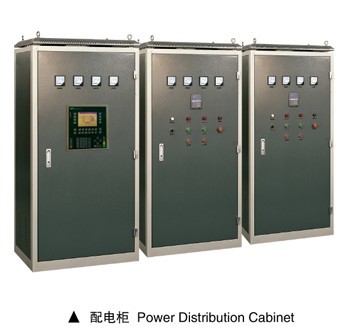

►配电柜Power Distribution Cabinet



►稀油站Thin Oil Station





结构特点／STRUCTURAL FEATURES



● 转鼓采用双相不锈钢整体离心浇铸，进出料口使用特殊耐磨材料，强度与刚度远高于普通不锈钢，振动更小、耐腐蚀、耐磨性更好，使用寿命更长；



● 采用大长径比结构，加长了沉淀区，延长了分离时间，处理量更大、效果更好；



● 旋转结构具有针对性，既保证出泥干度又使排渣顺畅；



● 独有的渐开线行星齿轮差速器，具有传动比大、差速度和扭矩可以灵活调节；



● 特制型钢机架，承载力大、不变形。确保设备稳定运行；



● 旋转叶片耐磨部件为专用耐磨和金材料，保证耐磨随强度，保证无破裂故障。





● Drum is made of duplex stainless steel with integrated centrifugal casting. Inlet



and outlet of the drum is made of special wear-proof materials, which the strength and rigidity is much higher than normal stainless steel. Vibrations are reduced greatly while become more corrosion-resistant, abrasion-resistant, wear-proof and durable.



● Structure with large length-diameter ratio is used. Sedimentation area is prolonged, which extends the time for separation and leads to higher handling capacity and better effects. The helical structure is able to ensure not only the degree of dryness of output sludge but also the smoothness of deslagging.



● Exclusive invalute planetary gear differential has large ratio of transmission, flexible differential speed and torque.Specially manufactured steel frame work has large load capacity and is not liable to deformation, which ensures the stable operation of the equipment.



● Helical blades are made of special purpose wear-proof alloy materials to ensure



capacity to resist wear and tear and break.



● 进料浓度范围：0.3%-35%;



● 固体回收率：~99％;



● 处理能力：0.38-88m3/h;



● 泥饼含水率：(城市污泥)≤75％;



● 噪声：<85dB(A);



● 长径比：2.42-5.1;



● 分离因素：630-4000(最大可达4200);





● Range of density of fed in materials： 0.3%-3.5%



● Rate of recovery of solid： ~ 99%



● Handling capacity： 0.3-88m3/h



● Rate of water content of mud cake (municipal sludge)： ≤75%



● Noise： <85dB (A)



● Length-diameter ratio： 2.42-5.1



● Separating factor：630-4000 (maximum is 4200)

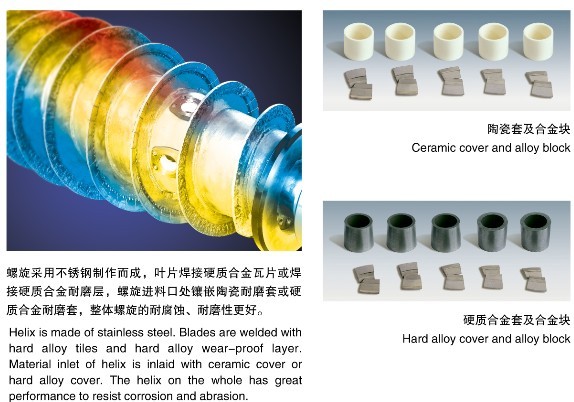

LW系列离心机关键部件/ KEY COMPONENTS OF LW SERIES CENTRlFUGE:

转鼓采用双相不锈钢离心浇铸而成，刚度与强度大大提高，减小了振动，降低了噪音，出渣口镶嵌陶瓷套或硬质合金套，提高了耐磨、耐腐蚀的性能。
